Automatic Crown Capping Machine

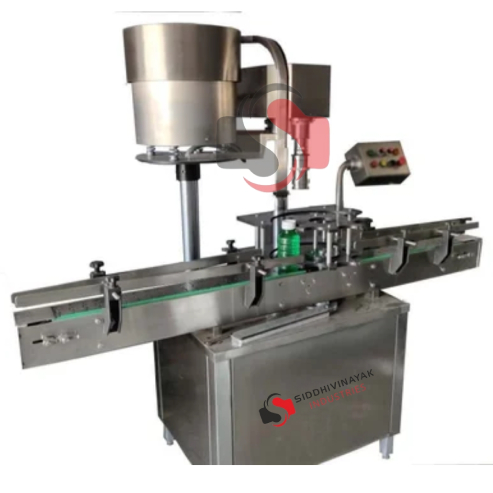

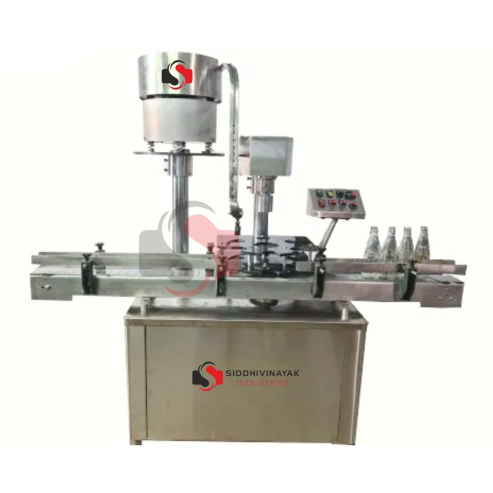

Automatic Crown Capping Machine-SVSCC 60/100/150/200 is suitable for automatically capping and sealing of Crown caps on Various bottle sizes, Especially Glass Bottle. The machine is user-friendly, versatile and self-sufficient. These Automatic Crown Capping machines are suitable for use in the food, beverage, liquor and other packaging industries.

As a trusted Automatic Crown Capping Machine Manufacturer and Exporter in Ahmedabad. We deliver reliable, high-quality bottle capping machine that meet industry standards. Upgrade your bottling line with our Automatic Crown Capping Machine for consistent results and smoother operations.

Model No.

SVSCC 60

SVSCC 100

SVSCC 150

SVSCC 200

Techinical Data

Model	SVSCC 60
Direction of Movement	Left to Right
Output/Min*	Up to 30 BPM
Power Supply	1.5 kW / 230 Volts / 50 Hz (Main Machine) 0.18 kW / 230 Volts / 50 Hz (Cap Feeder Vibrator) (Can Customized as Client Need)
MOC	Stainless Steel 304, Anodized Aluminum,
Machine Dimension	L 2000 mm * W 780 mm * H 1700 mm (+/- 50mm )
Convayer Length	L 2000 mm * W 100 mm +/- 50 mm Ht. S.S Slat Chain
No. of Head	1 Head
Type Of Capping	Crown Capping
Machine Motion	Rotary Motion – Index Based

Screw Cap Size	Ø10 mm to Ø80 mm (Special Size Can be Customized)
Capping Unit	Adjustable Cap Thread Unit
Caps Feeding	Vibratory Bowl Feeder / Cap Elevator
Cap Pick On Container	Chute Pick Up
Bottle Diameter	Up to 90 mm (Special Size Can be Customized)
Bottle Height	50 – 350 mm (Special Size Can be Customized)
Bottle Material	Glass
Option	With Bowl or With Cap Elevator
Change Parts	Required in case of change in Cap Size & Bottle Size (Star Plate, Cap Bowl, Cap Chute)
Machine Weight (kg)	340

Model	SVSCC 100
Direction of Movement	Left to Right
Output/Min*	Up to 60 BPL
Power Supply	1.5 kW / 230 Volts / 50 Hz (Main Machine) 0.18 kW / 230 Volts / 50 Hz (Cap Feeder Vibrator) (Can Customized as Client Need)
MOC	Stainless Steel 304, Anodized Aluminum,
Machine Dimension	L 2000 mm * W 780 mm * H 1700 mm (+/- 50mm )
Convayer Length	L 2000 mm * W 100 mm +/- 50 mm Ht. S.S Slat Chain
No. of Head	4 Head
Type Of Capping	Crown Capping
Machine Motion	Rotary Motion – Index Based

Screw Cap Size	Ø10 mm to Ø80 mm (Special Size Can be Customized)
Capping Unit	Adjustable Cap Thread Unit
Caps Feeding	Vibratory Bowl Feeder / Cap Elevator
Cap Pick On Container	Chute Pick Up
Bottle Diameter	Up to 90 mm (Special Size Can be Customized)
Bottle Height	50 – 350 mm (Special Size Can be Customized)
Bottle Material	Glass
Option	With Bowl or With Cap Elevator
Change Parts	Required in case of change in Cap Size & Bottle Size (Star Plate, Cap Bowl, Cap Chute)
Machine Weight (kg)	340

Model	SVSCC 150
Direction of Movement	Left to Right
Output/Min*	Up to 80 BPL
Power Supply	1.5 kW / 230 Volts / 50 Hz (Main Machine) 0.18 kW / 230 Volts / 50 Hz (Cap Feeder Vibrator) (Can Customized as Client Need)
MOC	Stainless Steel 304, Anodized Aluminum,
Machine Dimension	L 2000 mm * W 780 mm * H 1700 mm (+/- 50mm )
Convayer Length	L 2000 mm * W 100 mm +/- 50 mm Ht. S.S Slat Chain
No. of Head	6 Head
Type Of Capping	Crown Capping
Machine Motion	Rotary Motion – Index Based

Screw Cap Size	Ø10 mm to Ø80 mm (Special Size Can be Customized)
Capping Unit	Adjustable Cap Thread Unit
Caps Feeding	Vibratory Bowl Feeder / Cap Elevator
Cap Pick On Container	Chute Pick Up
Bottle Diameter	Up to 90 mm (Special Size Can be Customized)
Bottle Height	50 – 350 mm (Special Size Can be Customized)
Bottle Material	Glass
Option	With Bowl or With Cap Elevator
Change Parts	Required in case of change in Cap Size & Bottle Size (Star Plate, Cap Bowl, Cap Chute)
Machine Weight (kg)	340

Model	SVSCC 200
Direction of Movement	Left to Right
Output/Min*	Up to 120 BPL
Power Supply	1.5 kW / 230 Volts / 50 Hz (Main Machine) 0.18 kW / 230 Volts / 50 Hz (Cap Feeder Vibrator) (Can Customized as Client Need)
MOC	Stainless Steel 304, Anodized Aluminum,
Machine Dimension	L 2000 mm * W 780 mm * H 1700 mm (+/- 50mm )
Convayer Length	L 2000 mm * W 100 mm +/- 50 mm Ht. S.S Slat Chain
No. of Head	8 Head
Type Of Capping	Crown Capping
Machine Motion	Rotary Motion – Index Based

Screw Cap Size	Ø10 mm to Ø80 mm (Special Size Can be Customized)
Capping Unit	Adjustable Cap Thread Unit
Caps Feeding	Vibratory Bowl Feeder / Cap Elevator
Cap Pick On Container	Chute Pick Up
Bottle Diameter	Up to 90 mm (Special Size Can be Customized)
Bottle Height	50 – 350 mm (Special Size Can be Customized)
Bottle Material	Glass
Option	With Bowl or With Cap Elevator
Change Parts	Required in case of change in Cap Size & Bottle Size (Star Plate, Cap Bowl, Cap Chute)
Machine Weight (kg)	340

Key Features

No Container No Cap
Total GMP Model
Construction i/c main machine frame – S.S 304
Synchronized variable speed control
Fully synchronizes conveyor, star wheel, & platform turret
Accurate and repeatable performance
Smooth and accurate container handling
Star plat and feed worm made from UHMW material for smooth convey
All contact parts are made out of stainless steel
Capping Torque can be adjustable

Cap Feeding by Vibrator Bowl with Cap chute
AC Drive for speed control
Adjustable height of conveyor belt through adjustable leg
All standard electrical components and Motors
Fast product changeovers
Clutch System in star wheel to avoid bottle damage during operation
Minimum Setting time
Hopper can be completely dismantle for easy cleaning
Single Drive synchronizing operation of Conveyor and Star Wheel

No Container No Cap
Total GMP Model
Construction i/c main machine frame – S.S 304
Synchronized variable speed control
Fully synchronizes conveyor, star wheel, & platform turret
Accurate and repeatable performance
Smooth and accurate container handling
Star plat and feed worm made from UHMW material for smooth convey
All contact parts are made out of stainless steel
Capping Torque can be adjustable

Cap Feeding by Vibrator Bowl with Cap chute
AC Drive for speed control
Adjustable height of conveyor belt through adjustable leg
All standard electrical components and Motors
Fast product changeovers
Clutch System in star wheel to avoid bottle damage during operation
Minimum Setting time
Hopper can be completely dismantle for easy cleaning
Single Drive synchronizing operation of Conveyor and Star Wheel

No Container No Cap
Total GMP Model
Construction i/c main machine frame – S.S 304
Synchronized variable speed control
Fully synchronizes conveyor, star wheel, & platform turret
Accurate and repeatable performance
Smooth and accurate container handling
Star plat and feed worm made from UHMW material for smooth convey
All contact parts are made out of stainless steel
Capping Torque can be adjustable

Cap Feeding by Vibrator Bowl with Cap chute
AC Drive for speed control
Adjustable height of conveyor belt through adjustable leg
All standard electrical components and Motors
Fast product changeovers
Clutch System in star wheel to avoid bottle damage during operation
Minimum Setting time
Hopper can be completely dismantle for easy cleaning
Single Drive synchronizing operation of Conveyor and Star Wheel

No Container No Cap
Total GMP Model
Construction i/c main machine frame – S.S 304
Synchronized variable speed control
Fully synchronizes conveyor, star wheel, & platform turret
Accurate and repeatable performance
Smooth and accurate container handling
Star plat and feed worm made from UHMW material for smooth convey
All contact parts are made out of stainless steel
Capping Torque can be adjustable

Cap Feeding by Vibrator Bowl with Cap chute
AC Drive for speed control
Adjustable height of conveyor belt through adjustable leg
All standard electrical components and Motors
Fast product changeovers
Clutch System in star wheel to avoid bottle damage during operation
Minimum Setting time
Hopper can be completely dismantle for easy cleaning
Single Drive synchronizing operation of Conveyor and Star Wheel

Optional Features

Safety Cabinet

S.S Frmae with Poly Carbonate doors are provided for visibility of cutting material

Cap Feeding System

Cap Feeder Elevator or Cap Vibrator Bowl

Electrical Configuration

Part Name	Make	Description
Gear Box	Born Vario	1 HP Gear Box with Motor
VFD	Danfoss	1 HP Variable Frequency Drive to Control Speed of Machine
Star Plate	Nylopick	Material UHMW, Use to rotate the bottle
Vibrator	In House	Used in vibrator bowl to feed the caps in cap chute
Capping Head	In House	Adjustable Cap Thread Unit

Part Name	Make	Description
Gear Box	Born Vario	1 HP Gear Box with Motor
VFD	Danfoss	1 HP Variable Frequency Drive to Control Speed of Machine
Star Plate	Nylopick	Material UHMW, Use to rotate the bottle
Vibrator	In House	Used in vibrator bowl to feed the caps in cap chute
Capping Head	In House	Adjustable Cap Thread Unit

Part Name	Make	Description
Gear Box	Born Vario	1 HP Gear Box with Motor
VFD	Danfoss	1 HP Variable Frequency Drive to Control Speed of Machine
Star Plate	Nylopick	Material UHMW, Use to rotate the bottle
Vibrator	In House	Used in vibrator bowl to feed the caps in cap chute
Capping Head	In House	Adjustable Cap Thread Unit

Part Name	Make	Description
Gear Box	Born Vario	1 HP Gear Box with Motor
VFD	Danfoss	1 HP Variable Frequency Drive to Control Speed of Machine
Star Plate	Nylopick	Material UHMW, Use to rotate the bottle
Vibrator	In House	Used in vibrator bowl to feed the caps in cap chute
Capping Head	In House	Adjustable Cap Thread Unit

Application

By Packaging

Glass

By Industries

Distilleries & Breweries

Automatic Inner-Plug Inserting Machine Manufacturer

Soft Drinks

Foods

By Application

Automatic Linear Screw Capping Machine Manufacturer

Ketchup

Beer

Pick and Place Type Lug Capping Machine Manufacturer in India

Soda Bottle

Process

Previously filled bottles are continuously fed from the filling machine to the slat conveyor of the capping machine and then moved by the feeding screw to ensure the proper gap between the two bottles and transferred to the in feed star wheel.

Crown caps kept in orientation unit automatically orient caps in right direction before entering into delivery chute, bottle pick the cap from delivery chute and bottle is entering below the sealing head.

When the container comesunder the head and the sealing head willcompletely sealed. The swivel head is designed to seal the container according to a preset torque.

After sealing operation, sealing head moves upward with help of cam and bottle /jars move with exit star wheel and Move further on conveyor belt for next operation.
